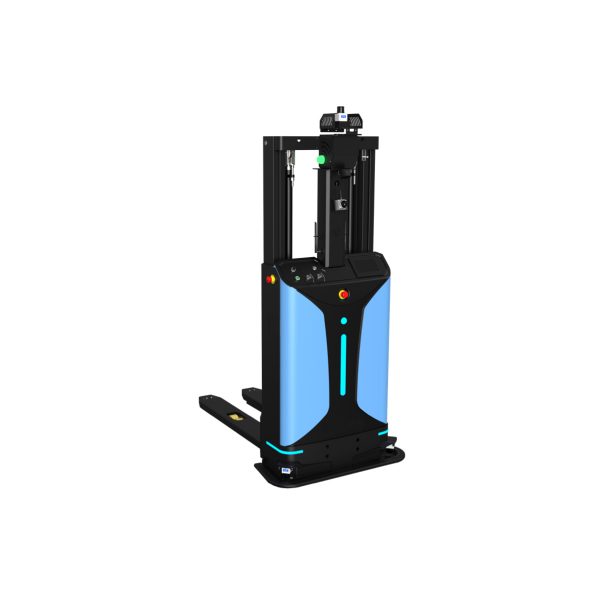

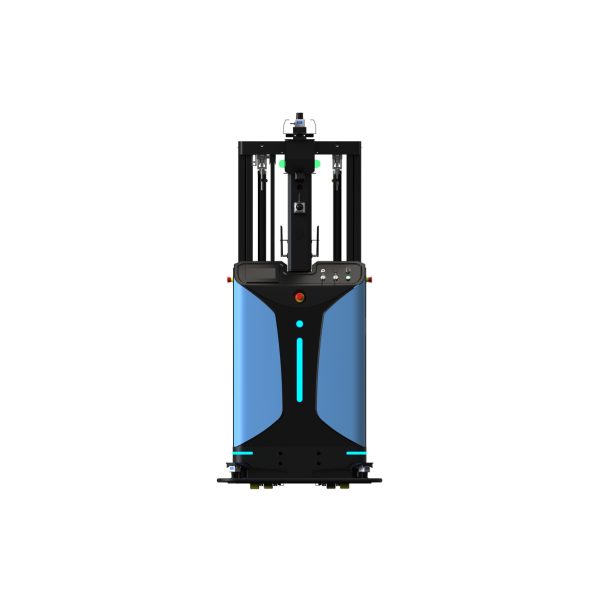

Small Stacker Autonomous Forklift
AGV-CDD14
 |
Built-in SRC Controller |
| SEER Robotics' system software can be seamlessly accessed for flexible collaboration of multiple models. | |
 |
Real Laser SLAM Navigation |
| Easy deployment without reflectors. | |
 |
More Intelligent and Accurate Visual Supports |
| 3D vision for obstacle detection, and pallet vision recognition. | |
 |
All Round Protection Makes It Really Safe |
| Multi-dimensional sensors ensure all-round protection. | |
 |
The Slender Design Allows It to Move Easily Through Narrow Aisles |
| The work can also be completed with extra small radius of gyration even in narrow aisles. |
| ● Standard ○ Optional - None | ||
| Product model | AGV-CDD14 | |
| Basic parameters | Product name | Laser SLAM Small Stacker Autonomous Forklift |
| Operation type | Automatic navigation, by manual control device | |
| Navigation type | Laser SLAM | |
| Pallet type | Open pallet | |
| Rated load capacity | 1400 kg | |
| Load centre distance | 600 mm | |
| Weight (with battery) | 680 / 740 kg | |
| Standard lifting height | 1600 / 3000 mm | |
| Forklift dimensions: L x W x H | FREE / P+F: 1710 x 989 x 1998 / 1710 x 989 x 2247 mm | |
| Fork dimensions: L x W x H | 1220 x 180 x 70 mm | |
| Fork outer width | 570 / 680 mm | |
| Right-angle stacking aisle width, pallet 1000x1200 (1200 placed along the fork) | 1951+200 mm | |
| Right-angle stacking aisle width, pallet 800x1200 (1200 placed along the fork) | 1885+200 mm | |
| Right-angle stacking aisle width, pallet 1000x1000 (1000 placed along the fork) | 1822+200 mm | |
| Minimum turning radius | 1227+200 mm | |
| Ambient temperature and humidity range | TEMP: 0°C to 50°C / RH: 10% to 90%, no compression, no condensation | |
| Performance parameters | Driving speed: full load / no load | 1.2 / 1.5 m/s |
| Passability (slope / step / gap) | <5% / 5 mm / 15 mm | |
| Navigation position accuracy | ±10 mm | |
| Navigation angle accuracy | ±0.5° | |
| Battery parameters | Battery specifications | 24 V / 210 Ah (lithium iron phosphate) |
| Comprehensive battery life | 10 h | |
| Charging time (10% to 80%) | 2 h | |
| Charging method | Manual / Automatic | |
| Function configurations | Lidar number | 1 (FREE H1 / P+F R2000-25M) +3 (FREE C2) |
| Wi-Fi roaming | ● | |
| 3D obstacle avoidance | ○ | |
| Pallet recognition | ○ | |
| Cage stack | ○ | |
| High shelf pallet recognition | ○ | |
| Pallet stack | ○ | |
| HMI display | ● | |
Safety configurations |
E-stop button | ● |
| Sound and light indicator | ● | |
| Braking distance: 1 m/s / 1.5 m/s | ≤30 cm / ≤50 cm | |
| 360° laser protection | ● | |
| Bumper strip | ● | |
| Fork height protection | ● | |
| Certifications | ISO 3691-4 | - |
| EMC | ● | |
| UN38.3 | ● | |
